DISPLAY UNIT SIDE VIEW

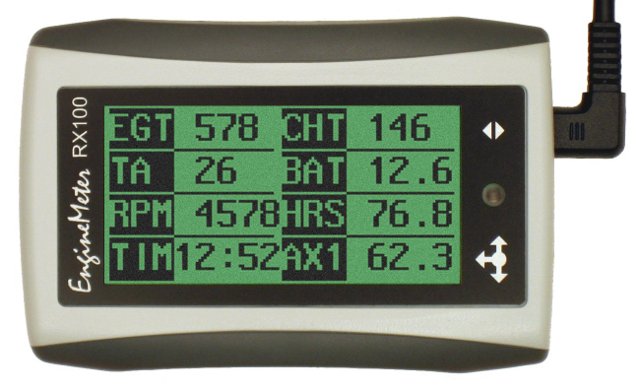

DISPLAY UNIT MAIN SCREEN







  • Large, anti-glare, anti-scratch, high contrast, 128x64 pixels LCD display
  • Fully customizable screen (parameter names, locations and character size)





DISPLAY UNIT ALARM INDICATION





In this example an alarm has been set on the parameter EGT and the current value is too high:

  • The value (486 degrees) is highlighted
  • The red ALARM LED flashes (the flash is not visible on the picture)

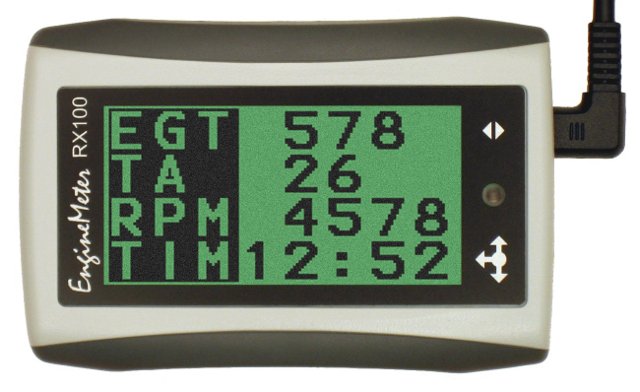

EXAMPLE OF DISPLAY UNIT SCREEN WITH VERY LARGE CHARACTERS



  • Other parameters can be dsiplayed by a single press of the navigation button
  • If an alarm condition is detected the faulty parameter will be shown even if it wasn't on the screen

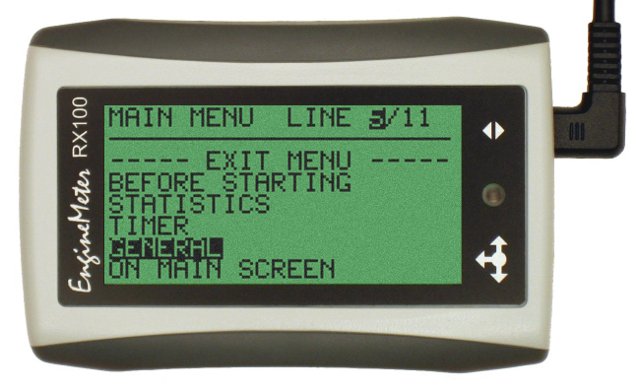

DISPLAY UNIT MENU EXAMPLE (MAIN MENU)



The unit is configured with a very easy/intuitive menu based user interface.

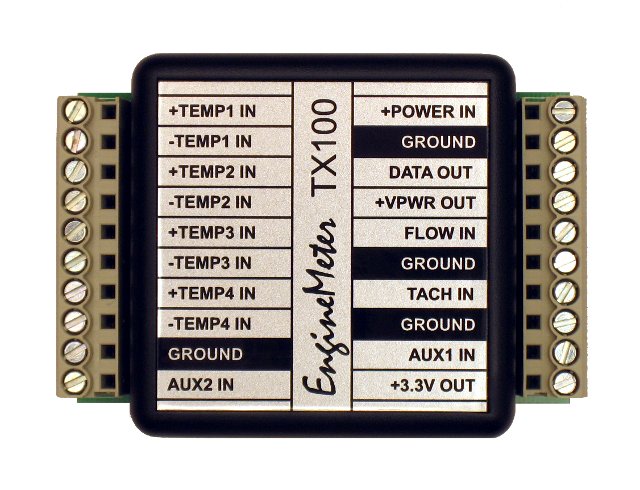

SENDER UNIT



EFMS 100 COMPLETE SYSTEM



  • TX100 sender unit (top)
  • RX100 display unit (bottom)
  • Link cable (cable from sender unit to display unit)
  • Tachometer sensor cable (center/left)
  • 9V battery enclosure with built-in ON/OFF switch (in case the vehicle has no battery) (right)
