The EFMS100 Engine and Fuel Monitor System is based on TX100 sender unit and RX100 display unit.

  • The sender unit is typically installed near the engine
  • The display unit is typically facing the user


EFMS100 System Highlights

  • All sensors are connected to the sender unit. Only 1 small cable connects to the display unit
  • Very low power requirements: Operates from the vehicle battery (e.g. 12V battery) or 1 small 9V battery
  • No additional battery required to save user configuration: all configurations and data are saved in FLASH memory


RX100 display unit highlights

  • Large, anti-glare, anti-scratch, high contrast, 128×64 pixels LCD display
  • Fully customizable parameter screen (parameter names, locations and character size)
  • Easy to use: menu driven interface with navigation button on the side


TX100 sender unit highlights

  • High quality terminal block connections (“rising cage design”) allow you to use probes (EGTs, CHTs, etc…) from any vendor


Engine tachometer and hour meter

  • Supports all types of 2-stroke and 4-stroke engines
  • Sensor cable (provided) simply wraps around engine ignition wire


Temperatures

  • 4 thermocouple inputs (EGT, CHT, water, oil, etc…)
  • Ambient temperature sensor built into the sender unit


Battery voltage: Monitors the vehicle battery voltage (or the voltage of the 9V supply battery).


Fuel information based on optional fuel flow sensor

  • Fuel flow
  • Fuel used
  • Fuel onboard
  • Time to tank empty
  • Distance to tank empty (after entering your speed)


Auxiliary inputs

  • 2 general purpose inputs
  • Examples of applications:
  • Fuel level sensor or detector
  • NTC thermistor (temperature sensor)
  • Additional voltmeter
  • Etc.


Timer

  • Various purposes (i.e. flight time, engine run time, etc…)
  • Multiple options for activating the timer


Alarms

  • Alarms can be set on any parameter
  • Ultra bright red flashing LED on display unit alerts the user of an alarm condition. In addition, the parameter is immediately highlighted on the screen


Statistics: Records minimum, maximum and average values of any parameter

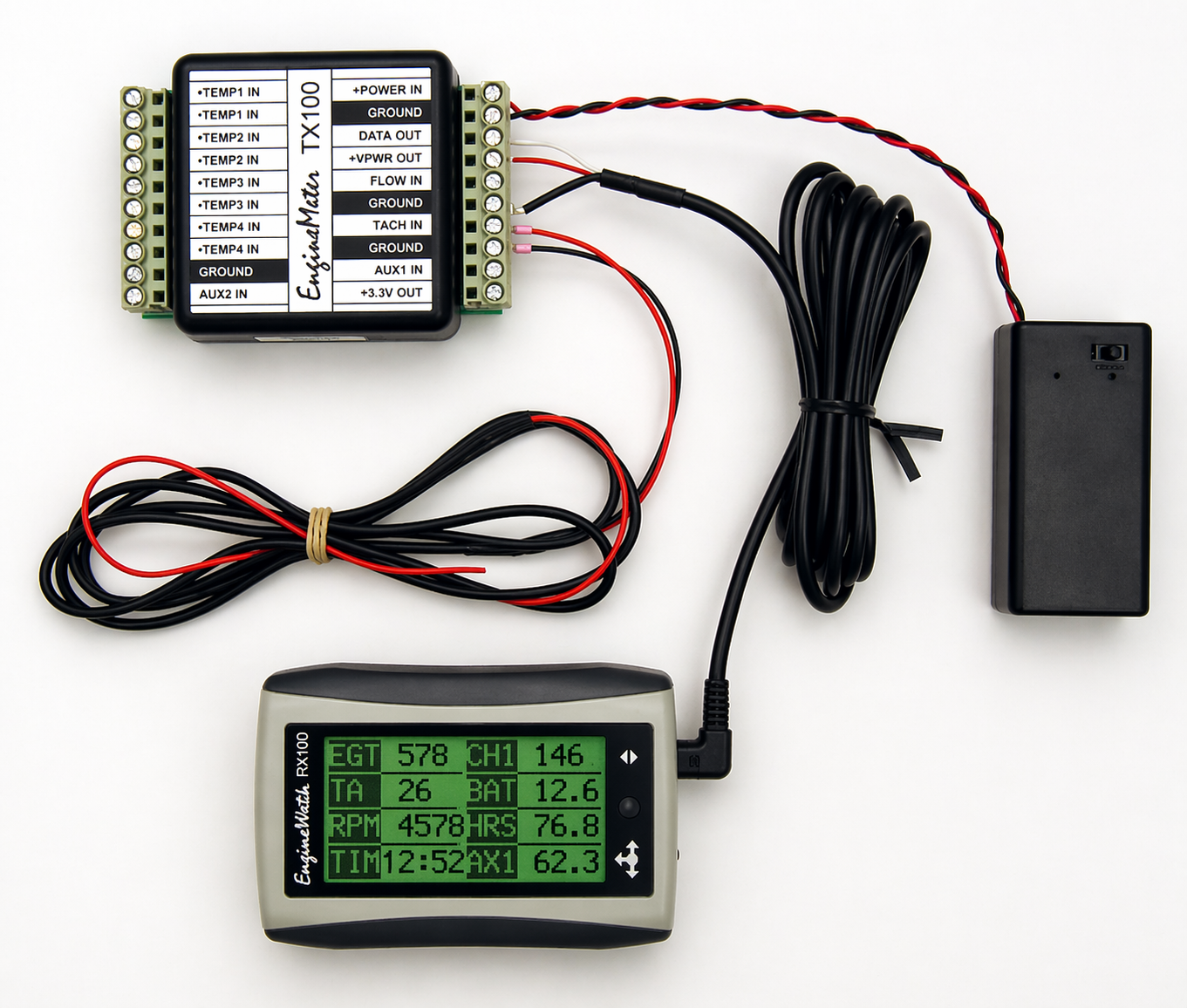

Parts supplied in EFMS100 system

  • TX100 Sender unit
  • RX100 Display unit
  • Link cable (cable from sender unit to display unit)
  • Tachometer sensor cable
  • 9V battery enclosure with built-in ON/OFF switch (in case the vehicle has no battery)


Optional accessories

  • Temperature sensors (e.g. EGT and CHT)
  • Fuel flow sensor
